Use of @ for attribute in XPath
Posted on: September 29, 2008 at 12:00 AM

In the previous section of XPath tutorial we have studied how to show all elements of an XML file.

Use of @ for attribute in XPath

In the previous section of XPath tutorial we have studied how to show all elements of an XML file. In this section we are describing you the use of @ for attribute in the XPath query. The "@" selects attribute.

In this example we have created an XML file "person.xml" as in our previous section, which is necessary to execute XPath query on to it. This "persons.xml" contains information related to name, age, gender of different persons.

Here is the full source code for persons.xml file as follows :

persons.xml

<?xml version="1.0" ?>

      <information>

        <person id="1">

        <name>Deep</name>

        <age>34</age>

        <gender>Male</gender>

        </person>



       <person id="2">

        <name>Kumar</name>

        <age>24</age>

        <gender>Male</gender>

        </person>



        <person id="3">

        <name>Deepali</name>

        <age>19</age>

        <gender>Female</gender>

        </person>



        <!-- more persons... -->

      </information>

Now we have declared a class XPathAttribute and in this class we are parsing the XML file with JAXP. First of all we need to load the document into DOM Document object. We have put that persons.xml file in that current working directory.


      DocumentBuilderFactory domFactory =

        DocumentBuilderFactory.newInstance();

        domFactory.setNamespaceAware(true);

        DocumentBuilder builder = domFactory.newDocumentBuilder();

        Document doc = builder.parse("persons.xml");

Above lines of code parses "persons.xml" file and creates a Document object. Next we have created XPath object with the use of XPathFactory.

XPath xpath = XPathFactory.newInstance().newXPath();

We want to show all elements with attribute id="3" of the person so we can write this in the XPath query as :

"//person[@id='3']/*" -it will fetch all elements with person id="3" .
Full example code is given as below:

XPathAttribute.java


import org.w3c.dom.*;

import javax.xml.xpath.*;

import javax.xml.parsers.*;

import java.io.IOException;

import org.xml.sax.SAXException;



public class XPathAttribute{



  public static void main(String[] args)

 throws ParserConfigurationException, SAXException,

  IOException, XPathExpressionException {



  DocumentBuilderFactory domFactory =

        DocumentBuilderFactory.newInstance();

  domFactory.setNamespaceAware(true);

  DocumentBuilder builder = domFactory.newDocumentBuilder();

  Document doc = builder.parse("persons.xml");

  XPath xpath = XPathFactory.newInstance().newXPath();

  XPathExpression expr =

          xpath.compile("//person[@id='3']/*/text()");

  Object result = expr.evaluate(doc, XPathConstants.NODESET);

  NodeList nodes = (NodeList) result;

  for (int i = 0; i < nodes.getLength(); i++) {

 System.out.println(nodes.item(i).getNodeValue());

  }

  }

}

To run this example :

create and save persons.xml
create and save XPathAttribute.java and
compile XPathAttribute and after compilation execute it

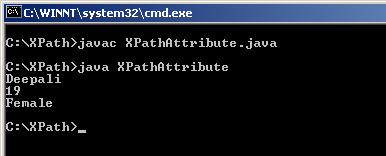

output would be like this:

Output:

Download Source Code
