Tiles Result Example in Struts 2.2.1
Posted on: January 20, 2011 at 12:00 AM
In this tutorial you will learn how to develop a tiles based application in struts

Tiles Result Example

In Struts Tiles is a view layer which allows separate page to be reusable in single page.

To use tiles in your application you need to design a base layout which arranges the different views into single page. The base layout describes where to arrange the page by using <tiles:insertAttribute name="...." /> tag. The base layout for given example is as follows

baseLayout.jspADS_TO_REPLACE_1

<%@ taglib uri="http://tiles.apache.org/tags-tiles" prefix="tiles" %>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"
"http://www.w3.org/TR/html4/loose.dtd">

<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title><tiles:insertAttribute name="title" ignore="true" /></title>
</head>
<body>
<table border="0" cellpadding="2" cellspacing="2" align="center">
<tr>
<td height="30" colspan="2" BGCOLOR="pink">
<tiles:insertAttribute name="header" />
</td>
</tr>
<tr>
<td height="350" width="150" BGCOLOR="lightblue">
<tiles:insertAttribute name="menu" />
</td>
<td width="450" BGCOLOR="#CCFFCC">
<tiles:insertAttribute name="body" />
</td>
</tr>
<tr>
<td height="30" colspan="2" BGCOLOR="pink">
<tiles:insertAttribute name="footer" />
</td>
</tr>
</table>
</body>
</html>

Now you need to design the pages which you have described in baseLaout.jsp such as header, footer, menu, body. And the pages which you have designed for your application.

header.jsp

<div align="center" style="font-weight:bold">
<font face="arier" size="6">Your Apps Header Goes Here</font>
</div>

menu.jspADS_TO_REPLACE_2

<%@taglib uri="/struts-tags" prefix="s"%>

<h3 align="center" color="red">Menu</h3>
<ul><a href="<s:url action="hometilesAction"/>">Home</a><br></ul>
<ul><a href="<s:url action="contacttilesAction"/>">Contact Us</a><br></ul>
<ul><a href="<s:url action="aboutUstilesAction"/>">About Us</a><br></ul>
<ul><a href="<s:url action="tutorialtilesAction"/>">Struts2.2.1 Tutorials</a><br></ul>

footer.jsp

<div align="center">
Your Apps Footer Goes Here
</div>

body.jsp

<HTML>
<BODY bgcolor="pink">
<p>body/content of the page</p>
</BODY>
</HTML>

aboutUs.jspADS_TO_REPLACE_3

<%@page contentType="text/html" pageEncoding="UTF-8"%>
<center><h1>About Us Page</h1></center>

home.jsp

<%@page contentType="text/html" pageEncoding="UTF-8"%>
<center>
<h1>Home Page of your Apps</h1>
<center>

contactUs.jsp

<h3><center>This is Contact Us Page</center></h3>

strutstutorial.jspADS_TO_REPLACE_4

<h3>
<center>
<a href="http://www.roseindia.net/struts/struts/struts2.2.1/index.html">Struts2.2.1 torials</a>
</center>
</h3>

Now you need the define the above basic pages(tiles) such as header, menu, footer, body And do mapping for all the pages of your application in a XML called tiles.xml


tiles.xml

<?xml version="1.0" encoding="UTF-8" ?>

<!DOCTYPE tiles-definitions PUBLIC
"-//Apache Software Foundation//DTD Tiles Configuration 2.0//EN"
"http://tiles.apache.org/dtds/tiles-config_2_0.dtd">

<tiles-definitions>

<definition name="baseLayout" template="/layouts/baseLayout.jsp">

<put-attribute name="title" value="Template"/>
<put-attribute name="header" value="/layouts/header.jsp"/>
<put-attribute name="menu" value="/layouts/menu.jsp"/>
<put-attribute name="body" value="/layouts/bodyPart.jsp"/>
<put-attribute name="footer" value="/layouts/footer.jsp"/>

</definition>

<definition name="home" extends="baseLayout">
<put-attribute name="title" value="Home"/>
<put-attribute name="body" value="/pages/home.jsp"/>
</definition>

<definition name="aboutUs" extends="baseLayout">
<put-attribute name="title" value="AboutUs"/>
<put-attribute name="body" value="/pages/aboutUs.jsp"/>
</definition>

<definition name="tutorial" extends="baseLayout">
<put-attribute name="title" value="StrutsTutorial"/>
<put-attribute name="body" value="/pages/strutstutorial.jsp"/>
</definition>

<definition name="contact" extends="baseLayout">
<put-attribute name="title" value="contactUs"/>
<put-attribute name="body" value="/pages/contactUs.jsp"/>
</definition>

</tiles-definitions>

Then you need to do some mapping in struts.xml as followsADS_TO_REPLACE_5

struts.xml

<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">

<struts>
<package name="default" extends="struts-default">

<result-types>
<result-type name="tiles" class="org.apache.struts2.views.tiles.TilesResult"/>
</result-types>

<action name="*tilesAction" method="{1}" class="net.roseindia.TilesAction">
<result name="home" type="tiles">home</result>
<result name="aboutUs" type="tiles">aboutUs</result>
<result name="strutstutorial" type="tiles">tutorial</result>
<result name="contactUs" type="tiles">contact</result>
</action>

</package>
</struts>

To configure tiles integration you need  to do some mapping for StrutsTilesListener. So you need to mapping as follows


web.xmlADS_TO_REPLACE_6

<?xml version="1.0" encoding="UTF-8"?>
<web-app id="WebApp_9" version="2.4" xmlns="http://java.sun.com/xml/ns/j2ee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd">

<display-name>Struts Tiles Example</display-name>

<listener>
<listener-class>org.apache.struts2.tiles.StrutsTilesListener</listener-class>
</listener>

<filter>
<filter-name>struts2</filter-name>
<filter-class>org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class>
</filter>

<filter-mapping>
<filter-name>struts2</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>

<welcome-file-list>
<welcome-file>index.html</welcome-file>
</welcome-file-list>

</web-app>

finally you need to write a Action which can handle all these


TilesAction.java

package net.roseindia;

import com.opensymphony.xwork2.ActionSupport;

public class TilesAction extends ActionSupport {

	private static final long serialVersionUID = -2613425890762568273L;

	public String home()
	{
		return "home";
	}

	public String aboutUs()
	{
		return "aboutUs";
	}

	public String tutorial()
	{
		return "strutstutorial";
	}

	public String contact()
	{
		return "contactUs";
	}

	@Override
	public String execute() throws Exception {
		// TODO Auto-generated method stub
		return home();
	}
}

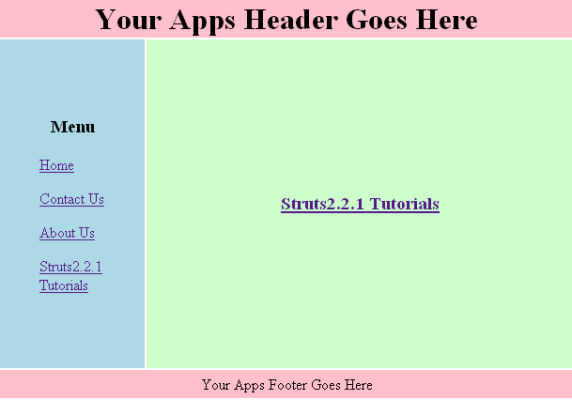

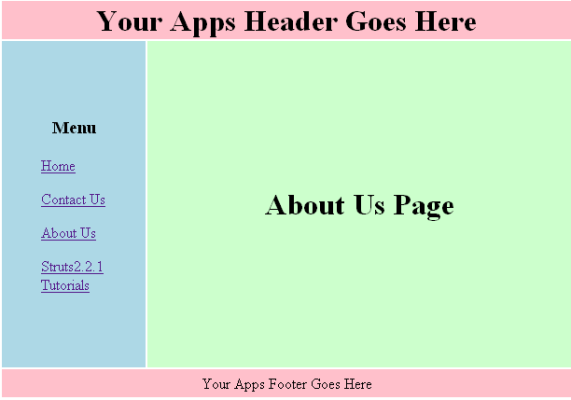

When you run this application it will display message as shown below:






Download this example codeADS_TO_REPLACE_7
